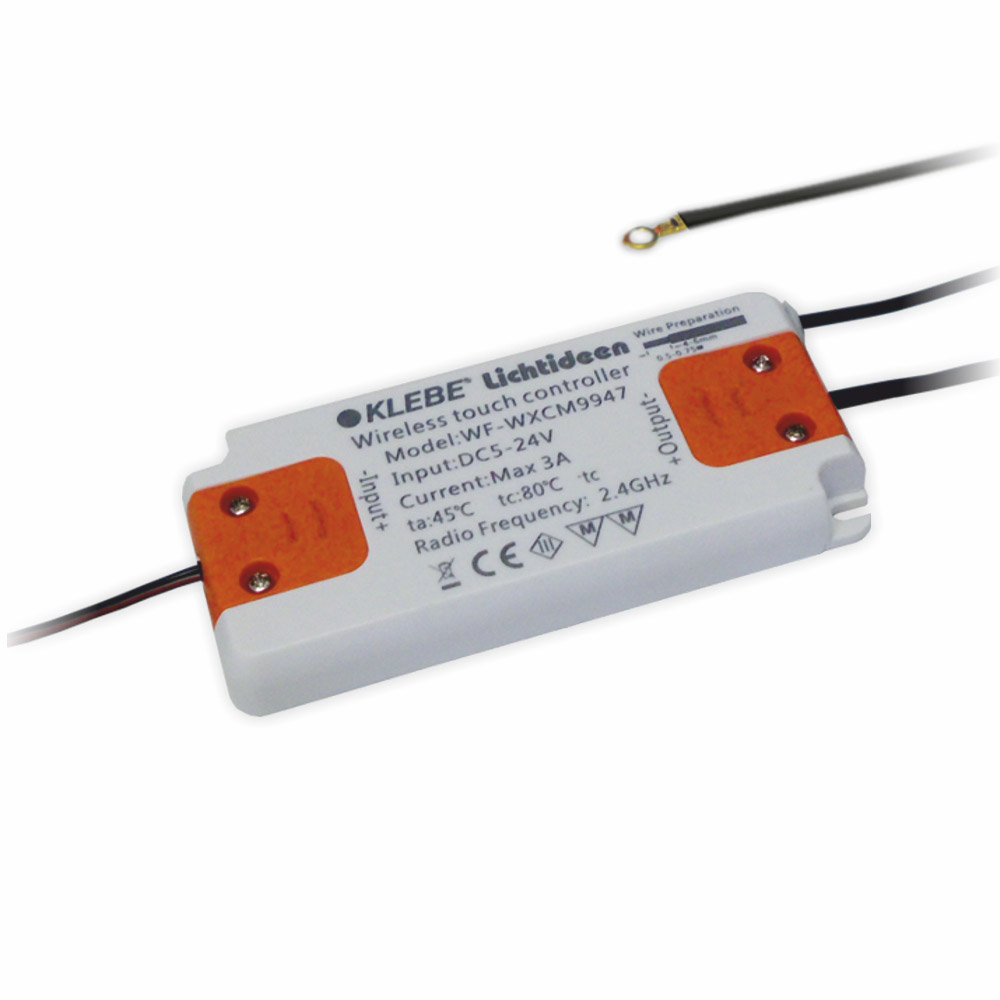

| Technische Daten | |
|---|---|
| Input Voltage | 5 - 24 Volt DC |
| Wattage | max. 36 Watt at 12 Volt DC input max. 72 Watt at 24 Volt DC input |
| Type | 500 mm mains lead with LED plug-in connection 500 mm lead with LED socket 2000 mm sensor lead with Ringterminal M4 |
| Dimensions | 99 x 47 x 12 mm |
| Housing colour | white |
| Installation | with screws |
| Radio range | max. 15 m in open area, might be reduced greatly by metal or walls |
| Remarks | installation on secondary side between transformer and light, wireless connection between two or more touch controllers, synchronous switching and dimming of the attached lights, setup of 4 separate control channels possible |
| Article code |
|---|
| 39.418.000 |
